WIRELESS REAR PARKING SENSOR KIT

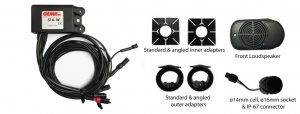

4 rear sensors with control unit, speaker and adapters.
The 514W is a universal parking system which relies on the reflection of sound waves emitted
by ultrasonic detectors spaced equally across the bumpers, to assure the best read-out.
They are easy to install on all types of bumpers, even metallic ones, internally for a flush
factory-fitted look or externally with specific adapters.
The PDC (Park Distance Control) system comes with 1 acoustic warning loudspeaker
(master device), 1 resin-filled control unit (slave device) and 4 compact waterproof sensors .The proximity sensors are configurable via the loudspeaker (buzzer) according to your preferences and bumper type.
MAJOR ADVANTAGES OVER EXISTING PRODUCTS
• Wireless communication between speaker module and rear sensor module (no cables
need to be passed through the vehicle).
• 58kHz sensor heads, small in size and less intrusive, which boast unsurpassed sensitivity.
• Molex connector provides a secure IP-67 sealed connection.
• 360° swivel inner and outer adapters, standard or 10° angled.
• Automatic, self-diagnostic function: system excludes any faulty sensor and keep the other
ones active.
• Sensors and fixing can be painted to colour match your vehicle.
• Ease of install, less wiring to run through vehicle.
• Programming of system via speaker or PC.
Main programmable parameters
• sensor detection zone
• stop zone
• suppression of external spare tire/tow hitch/bike rack detection
• speaker volume
• Power supply: 12/24V
